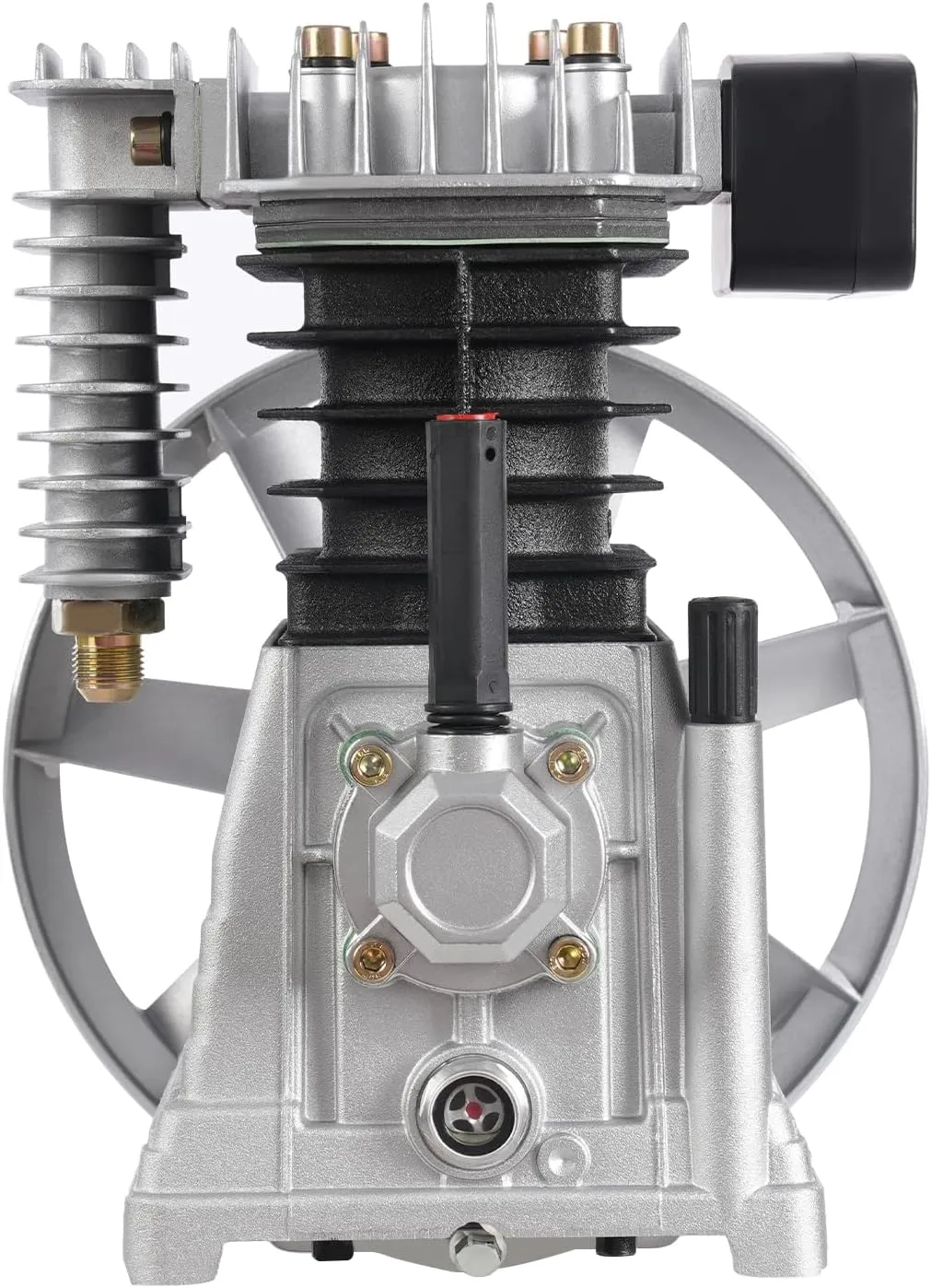

- DURABLE AND STURDY - The air compressor pump head is made of high-quality aluminum and iron with a painting process, which is sturdy and wear-resistant, and has a long service life. It can be used in the automotive industry, pneumatic tools, decoration, chemical industry, light industry, textile, food, health, electronics, machinery, mining, construction, scientific research and other sectors that require high quality compressed air.
- POWERFUL FUNCTION - The air compressor pump head can be matched with 3HP engines, with an exhaust capacity of up to 66Gal/min, rated exhaust pressure of 0.8mpa, and a maximum pressure of 1.0mpa and extended cylinder, providing you with strong support for use.
- THOUGHTFUL DESIGN - The air compressor pump head adopts suction and exhaust valve design and mainframe belt design to ensure that the mainframe operates in balance, while the strong cooling fan blade provides good heat dissipation effect.
- WORK ASSISTANT - The pump head sucks in air from the outside world through a suction and discharge valve and then discharges the air into a reservoir. By continuously discharging air into the reservoir, the air is compressed in the reservoir to reach a predetermined pressure value, which is helpful for your work.
- AIR FILTER MUFFLER - It can deliver clean, contaminant-free air to the pump with low noise. With complete accessories, and simple structure, you can finish installing it yourself, very time-saving and convenient.
Specification
Color: Silver and Black
Model: 2065
Material: Aluminum and Iron
Process: Painting
Assembly Required: Yes
Mounting Type: Mounting on Air Compressor(Not Included)
Matching Motor Power: 2.2KW
Discharge Volume: 250L/66Gal/min
Rated Exhaust Pressure: 0.8mpa
Maximum Pressure: 1.0mpa
Horsepower: 3HP
Cylinder Diameter: 65mm/2.56in
Pulley Outer Diameter: 260mm/10.24in
Product Size: 31*26*34cm/12.2*10.24*13.39in
Package Size: 34*33.6*25.5cm/13.39*13.23*10.04 in
Net Weight: 11kg/24.25 lb
Gross Weight: 12.32kg/27.16 lb
Package Included
1* Air Compressor Pump Head
Other Accessories for Use
Notes
1. Before matching, you should pay attention to the air supply pressure, exhaust volume per minute, rated power, mounting aperture, header connecting pipe caliber, and the number of cylinders.
2. Before use, please carefully check the cable, power supply, etc., and take good protective measures to avoid potential safety hazards.
3. Before repairing, maintaining or disassembling the machine, please make sure to stop the machine and cool it down after relieving the pressure before operation.
4. Please note that the parts need to be cleaned and dried after assembly and please do not use too much force when disassembling and assembling parts.
5. Please note that the machine is rated pressure and can not be adjusted upward.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
